The 4DSkin solution enables non-contact deformation measurements to be completed over large areas (several kilometres), at high frequency (typically every 2 minutes) and to a very high level of accuracy (typically 0.2 mm).





4DSkin: contactless deformation measurement

4DSkin provides simultaneous remote measurement of thousands of data points over large areas without the need to access the area under observation. Measurement accuracy ranges from 0.1 mm to a few mm for data points up to 3-4 km distant, regardless of weather conditions.

4DSkin generates displacement maps of all pixels in the area, and time-based graphs tracing the evolution each pixel.

4D-Skin is based on the use of interferometric synthetic aperture radar technology.

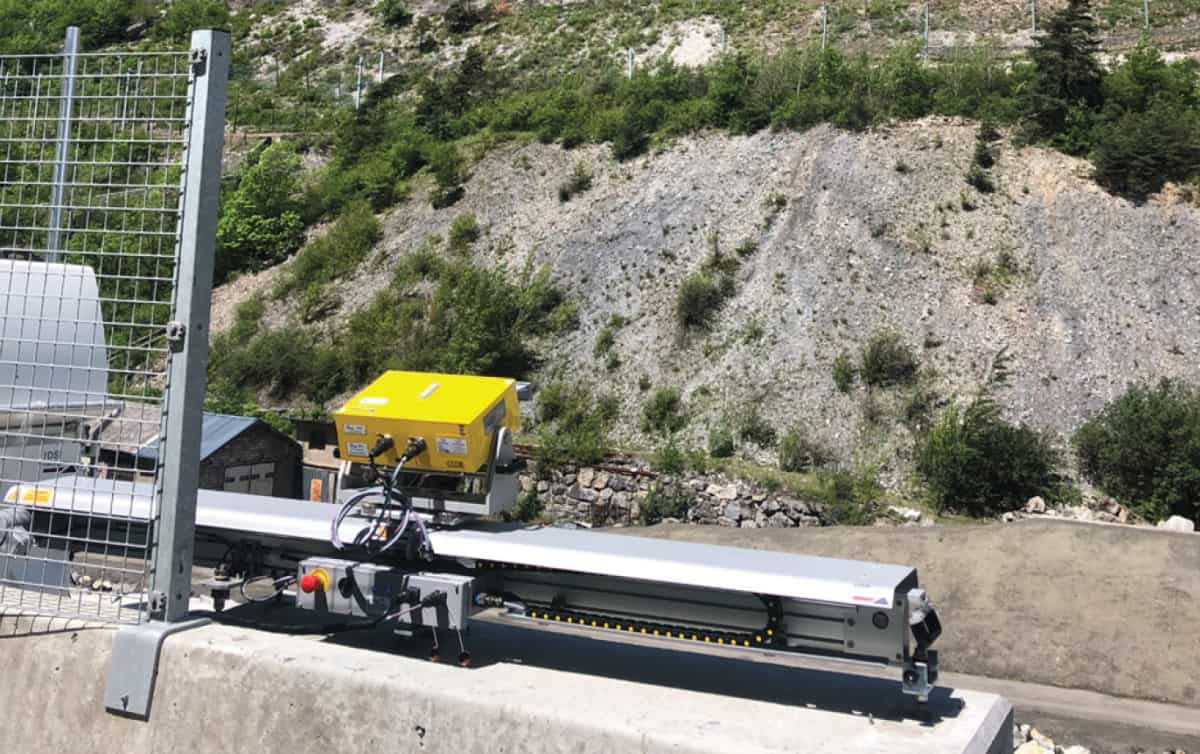

4DSkin de SIXENSE

4DSkin and its applications

Millimetric monitoring of rock instabilities (excluding vegetation) over large areas, and of large critical structures:

  • Landslips
  • Hills and Cliffs
  • Open-cast mines
  • Dams

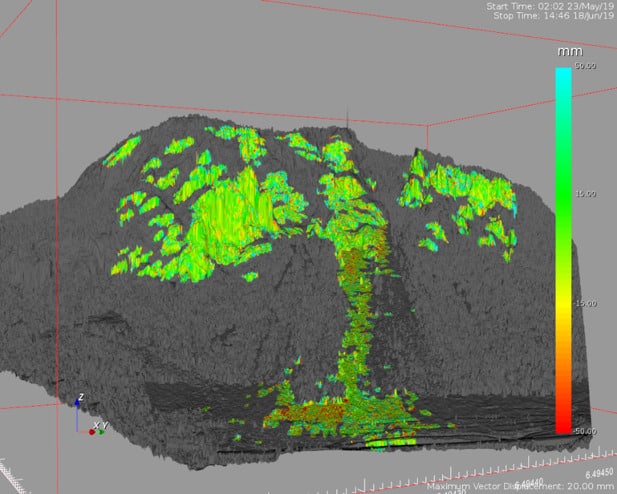

Typical display of results via the Geoscope online platform

résultats 4DSkin sur Geoscope par SIXENSE

The 4DSkin solution gives you:

  • Remote monitoring of large areas (at high frequency where necessary)
  • Reliable, consistent measurements: this system is immune to weather conditions
  • Fast installation and configuration: a 100% operational system in a few hours
  • Accuracy of between 0.1 mm and a few mm over distances of up to 3-4 km
